This page presents star maps that illustrate Lacaille's star catalog from Coelum Australe Stelliferum (the previous page has explanations).

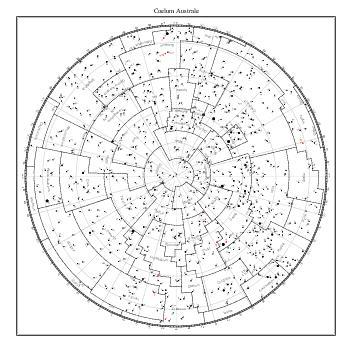

The first map below represents the whole sky south of the tropic of Capricorn and all the lettered stars from Lacaille's catalog, similarly to the planispheres found at the end of [CA] and [EA] (a nice high definition reproduction of the one in [CA] can be found here). Instead of the constellation figures, the map shows the modern constellation boundaries precessed to the equinox 1750.0. It shows all the lettered stars from [CA], while the planispheres only show the brightest ones. A detailed comparison reveals a few erroneous or misplaced letters in the planisphere.

Coelum Australe
pdf png
Lacaille's Coelum Australe

The maps take into account a few corrections to the letter assignments in [CA], described in more detail in the file lac_notes.dat, according to the following table. In these cases, the star and the label are drawn in red.

CA #Issue
261is χ For instead of 263
294is τ Eri
493is δ Pic instead of 495
513has lost η Dor because it doesn't exist
556is N Car instead of 555 which doesn't exist
996is β Ant rather than η Ant
1376is β Nor, omitted from CA
1377is τ Sco, omitted from CA

The seven maps below cover the sky south of the tropic of Capricorn and show all the stars from Lacaille's catalog in [CA], with their CA numbers and letter assignments by Lacaille (corrected as just described). Lacaille's stars are drawn as blue disks and his nebulous objects as yellow disks of fixed radius (corresponding to the arbitrary magnitude value 3).

All the stars from the Hipparcos catalog up to magnitude 7.0 (or fainter if there is a corresponding Lacaille star, which happens for about 80 of them) are represented by + crosses, at their positions reduced to the equinox and epoch B1750.0. In the rare cases where Lacaille's position differs noticeably, a blue line connects the Lacaille star to its corresponding Hipparcos star.

When a Lacaille star has no match in the Hipparcos catalog but has a match in the Henry Draper catalog (which happens in a couple dozen cases, often for nebulous objects), the corresponding Draper star is represented by an x cross in its position precessed to B1750.0.

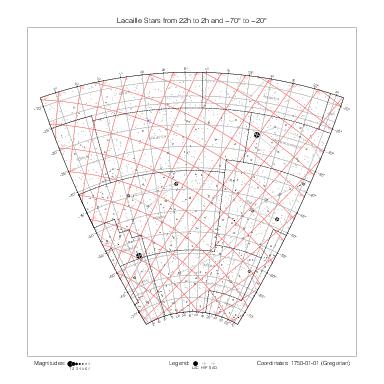

13
pdf png
13

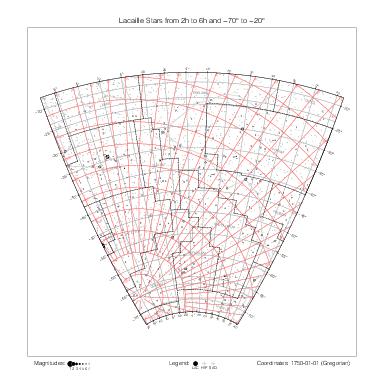

14
pdf png
14

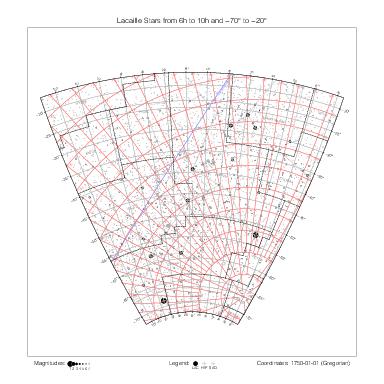

15
pdf png
15

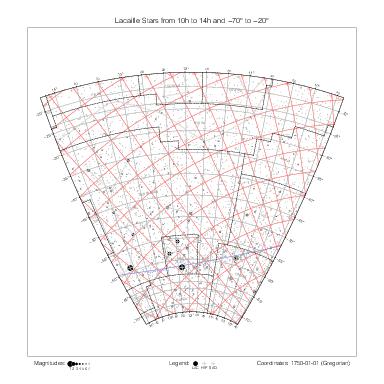

16
pdf png
16

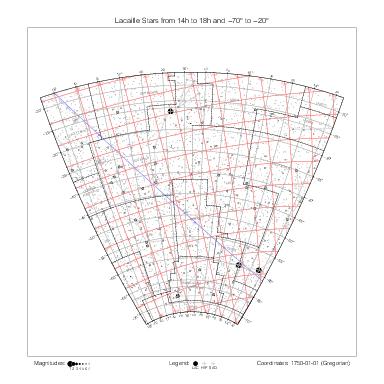

17
pdf png
17

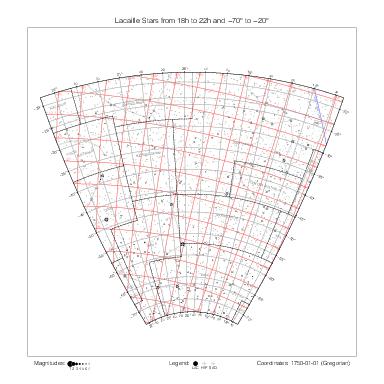

18
pdf png
18

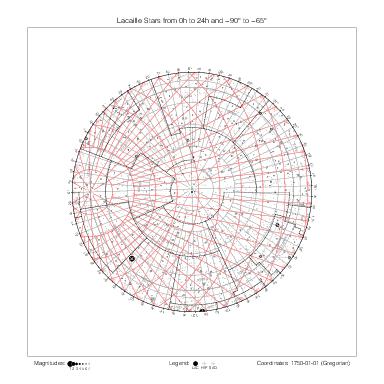

19
pdf png
19

The maps are too dense to look presentable on letter-size paper. They are meant to be looked at and zoomed in on a (preferably large) monitor.


Acknowledgment. This research has made use of the SIMBAD database, operated at CDS, Strasbourg, France.
